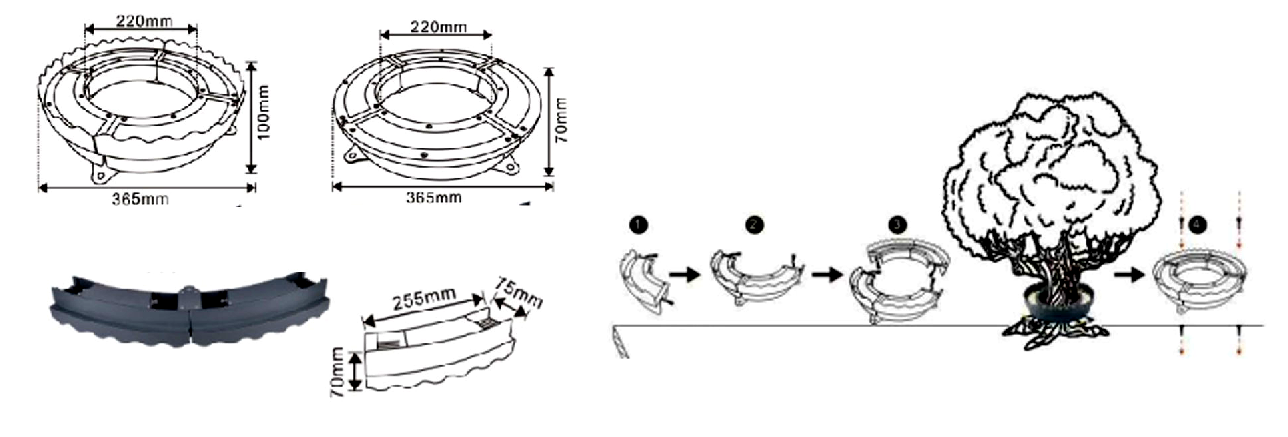

DIMENSIONS(mm):

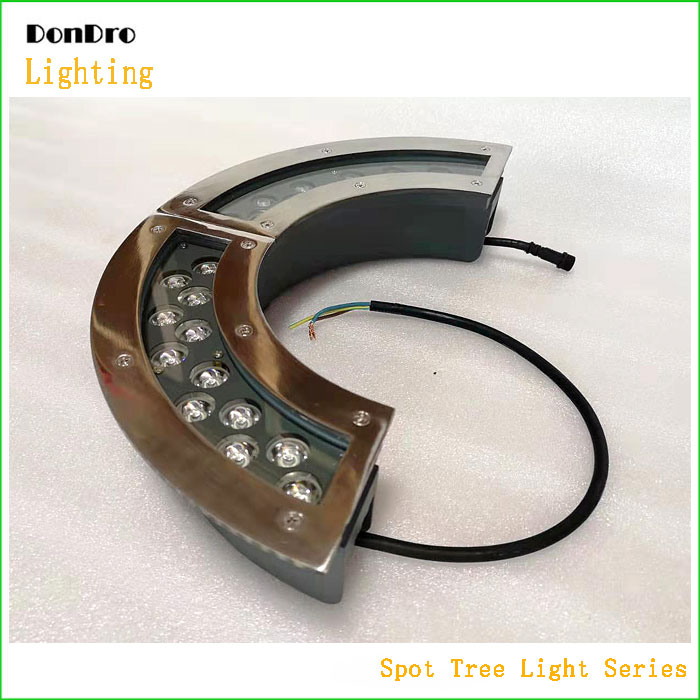

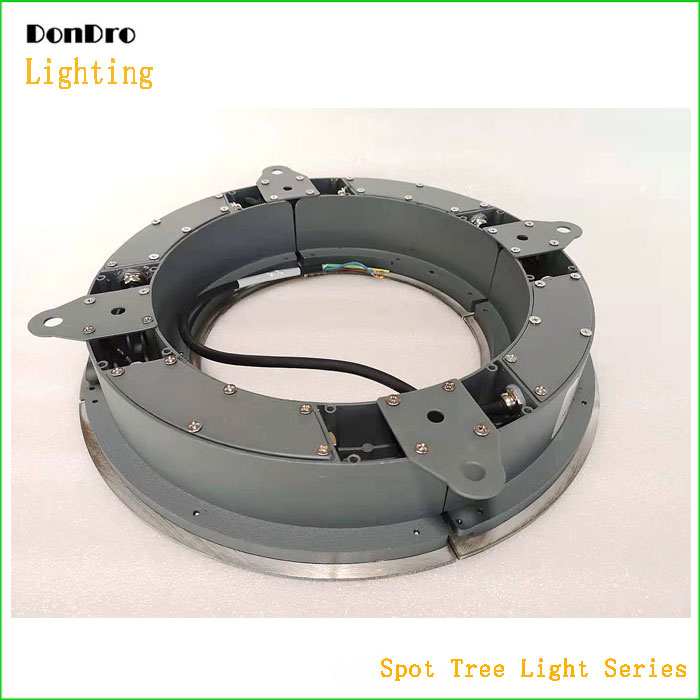

Model: SLTH055
Performance parameter:
| Power: | 4*12W | |||

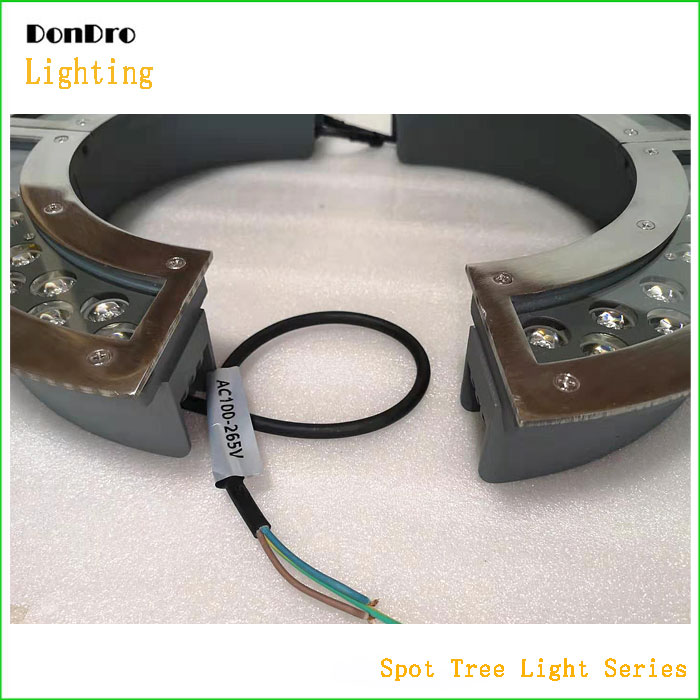

| Voltage： | AC100-265V/DC12 /DC24V | |||
| Light effect: | Single Color / RGB / RGB+W | |||
| Light angle: | 15°∽ 120° | |||
| Protection grade: | IP67 | |||
| Lamp size: | Inner Diameter: Φ220*W75*H100/70mm | |||
| Outer Diameter: Φ365*W75*H70mm | ||||
| Lamp color: | Dark grey or Custom colors | |||
| Lamp life: | ＞50000Hrs. | |||
| Operting temperature: | -30°C~ +50°C | |||
| Controller signal: | Internal Control or External Control by DMX512 or TTL | |||
| Optional: | Light source, power,size,voltage,colors,light distribution etc. customizable. | |||
Materals and applications:
| Surface treatment: | The surface is sprayed by anodic oxidation and out door grade. | |||
| Lamp materials: | Die-casting Aluminum & Heal-resistant tempered glass cover. | |||
| Applications: | Lighting for Indoor and Outdoor application | |||

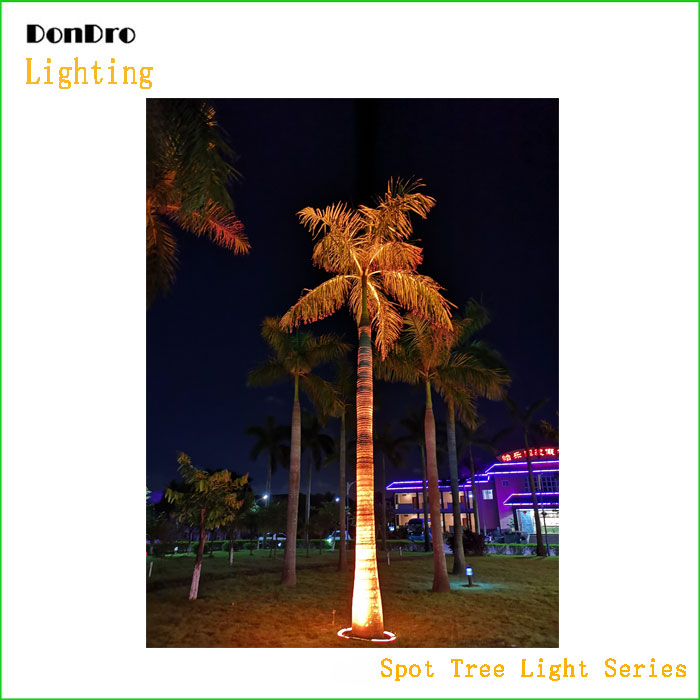

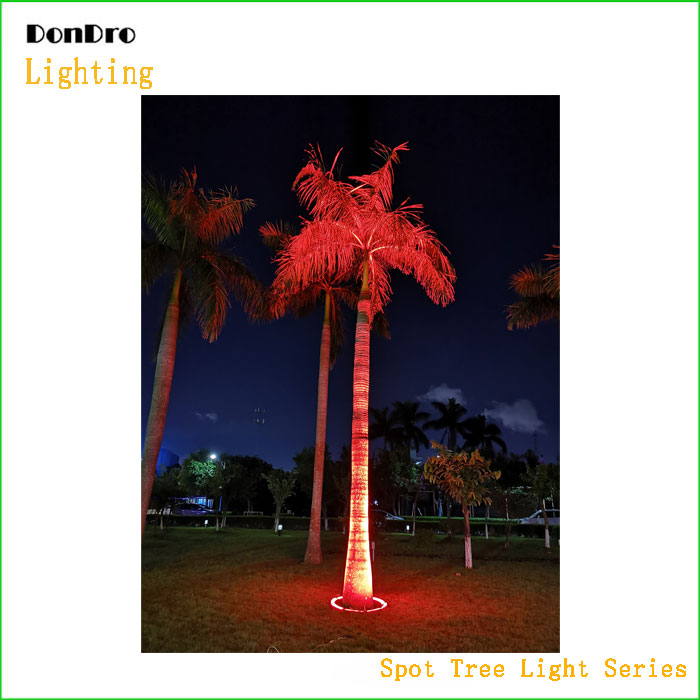

| Lighting layout onto building cylinderS;Garderns;Courtyards,etc. | ||||
